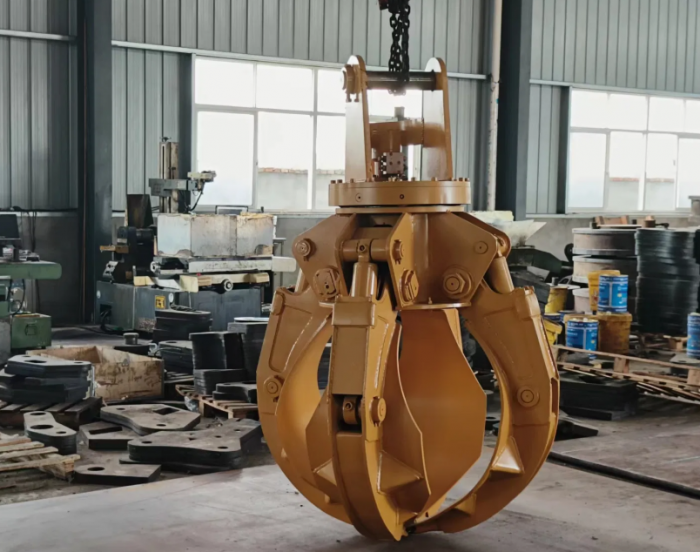

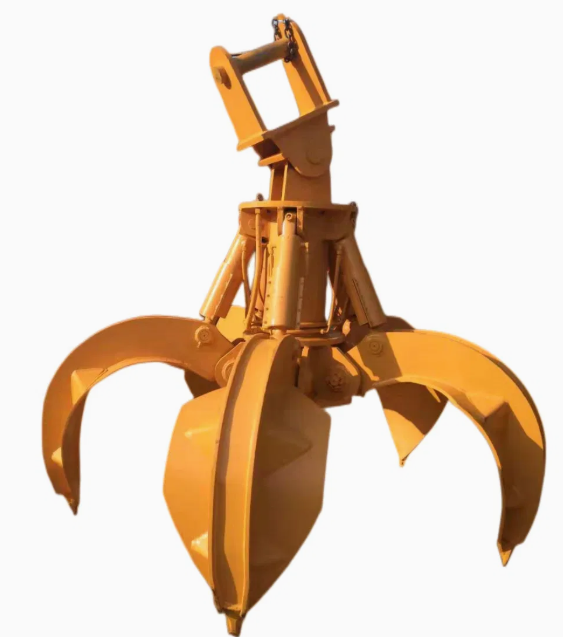

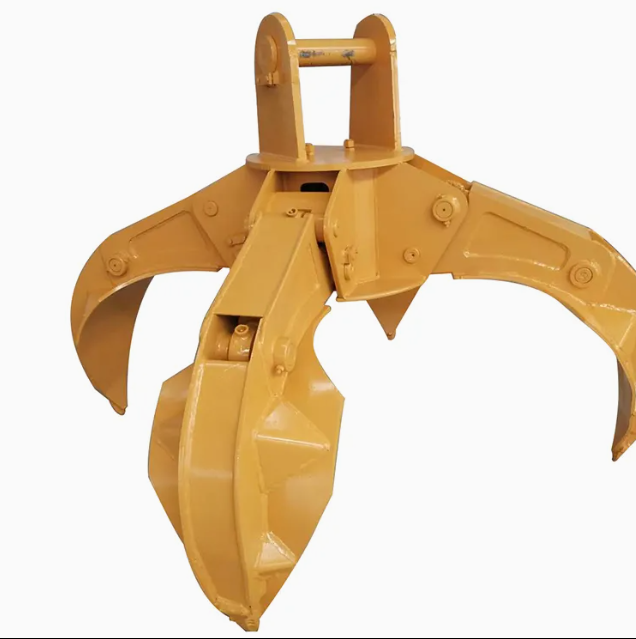

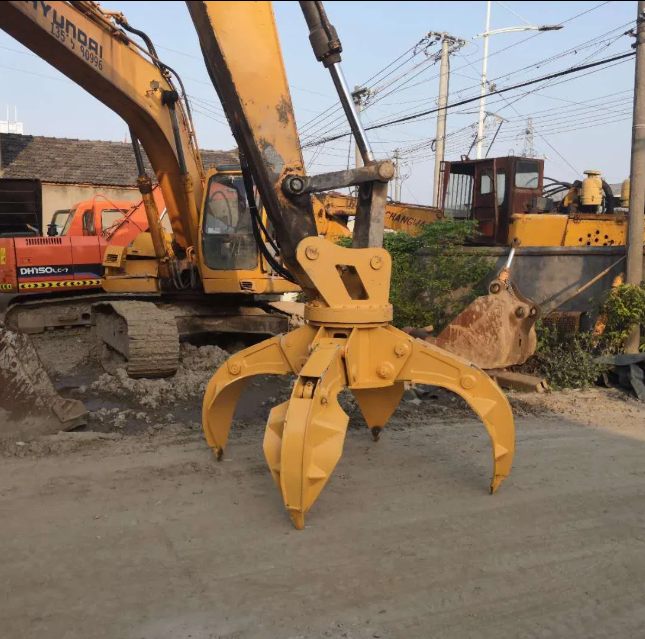

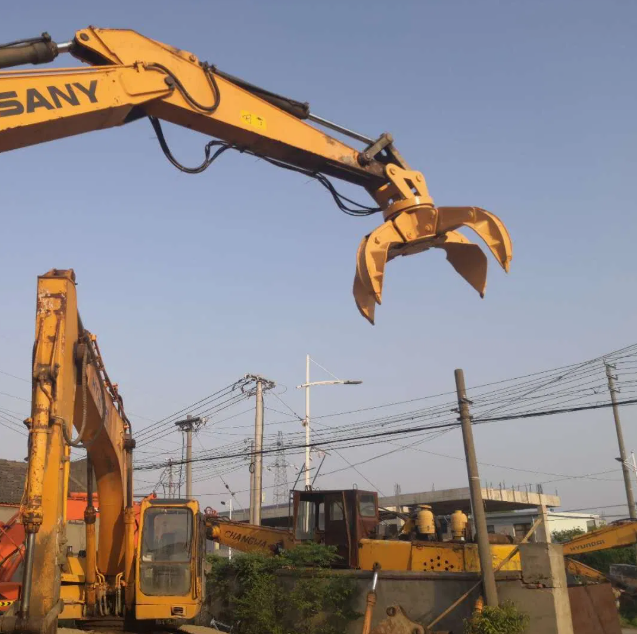

Hydraulic Rotating Grapple
Product Feature
1. Using special steel material with high ductility
and high abrasion resistance.
2. Using imported balance valve motor with buffering and braking function.
3. The cylinder is equipped with non-return valve, more safety for grabbing.
4. Using high strength rotating support device.360 degree rotating. Speed can be controlled.
5. Using the internal high pressure cylinder to protect the soft tube.
6. Widely used in sand plant, stone-crushing plant, dock, renewable resources recycling, auto decomposition,etc

| Litem/Model | Unit | XS-02 | XS-04 | XS-06 | XS-08 |
| weight | Kg | 510 | 980 | 1180 | 1500 |
| Max opening size | Mm | 1500 | 1700 | 2000 | 2500 |
| Max pressure | Bar | 220 | 220 | 220 | 260 |
| Max flux | L/min | 20-70 | 60-120 | 60-120 | 60-120 |
| Grapple volume | m3 | 0.4 | 0.6 | 0.8 | 1 |
| No.of jaw | Piece | 4-5 | 4-5 | 4-5 | 4-5 |
| Suitable excavator | Ton | 5-8 | 10-15 | 20-25 | 30-45 |
