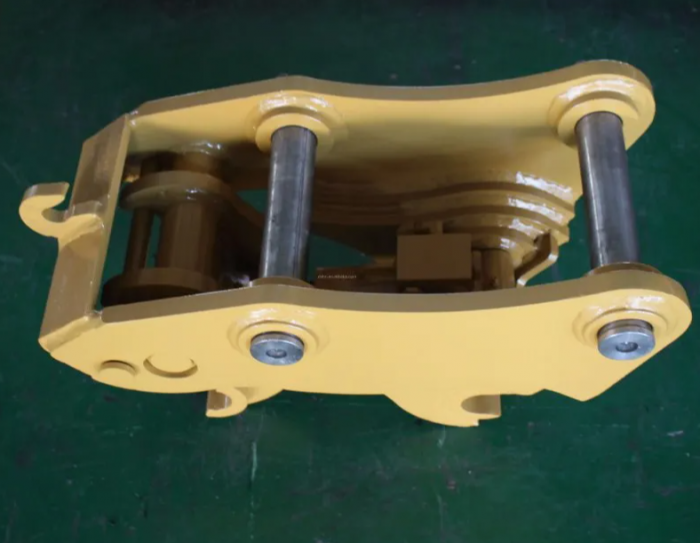

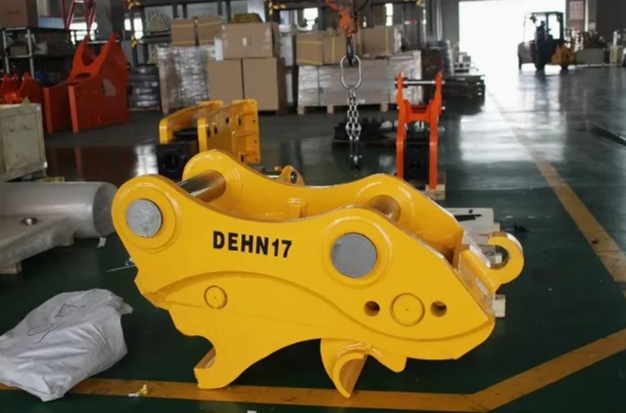

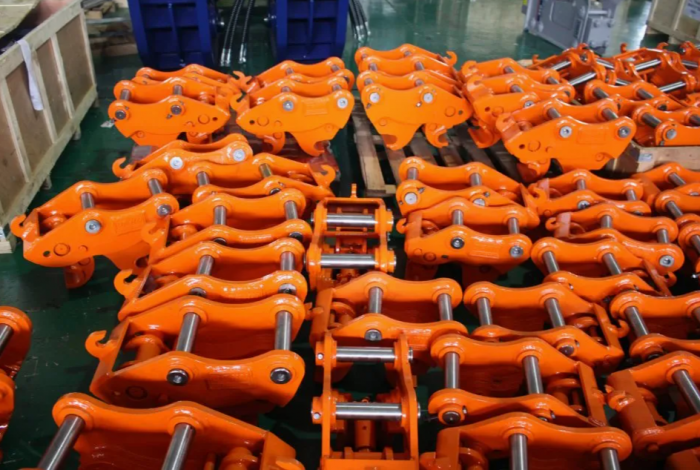

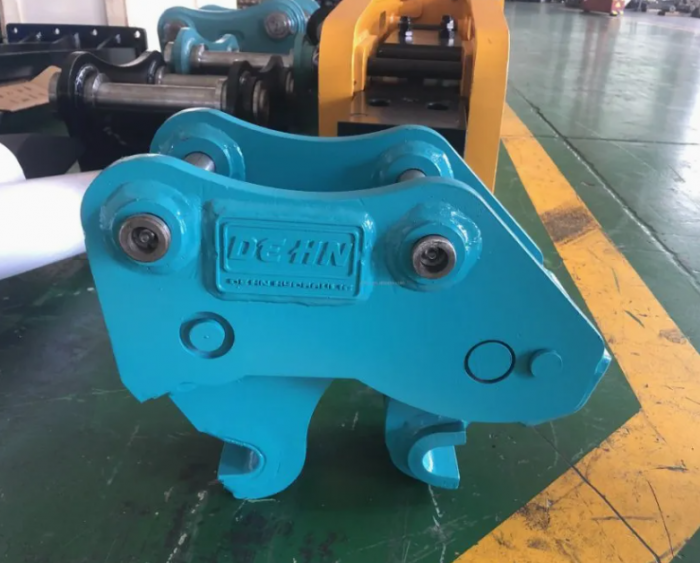

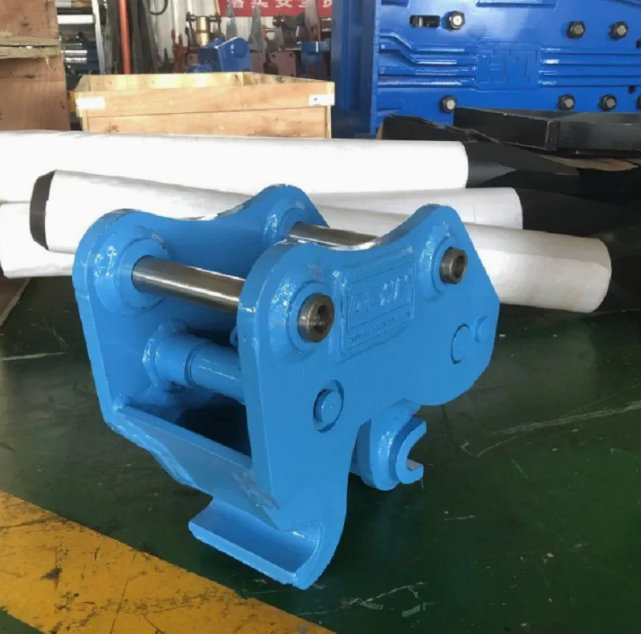

Quick Connector
Product Description
| Model | Unit | JXK-MINI | JXK-02 | JXK-04 | JXK-06 | JXK08 |
| Length | mm | 300-450 | 550-595 | 581-610 | 795-825 | 888-980 |
| Height | mm | 246 | 312 | 310 | 388 | 492 |
| Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 |
| Pin distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 |
| Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 |
| Cylinder stroke length | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 |
| Up pin-down pin | mm | 159 | 200 | 200 | 260 | 325 |
| Weight | kg | 30 | 60-70 | 80-90 | 220-250 | 400-430 |
| Operating Pressure | Kg/cm² | 200 | 200 | 200 | 200 | 200 |
| Oil Flow Range | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suits Excavator | t | 1.5-4 | 4-6 | 6-10 | 9-16 | 16-24 |
